Saddles

Maxi-Stretch

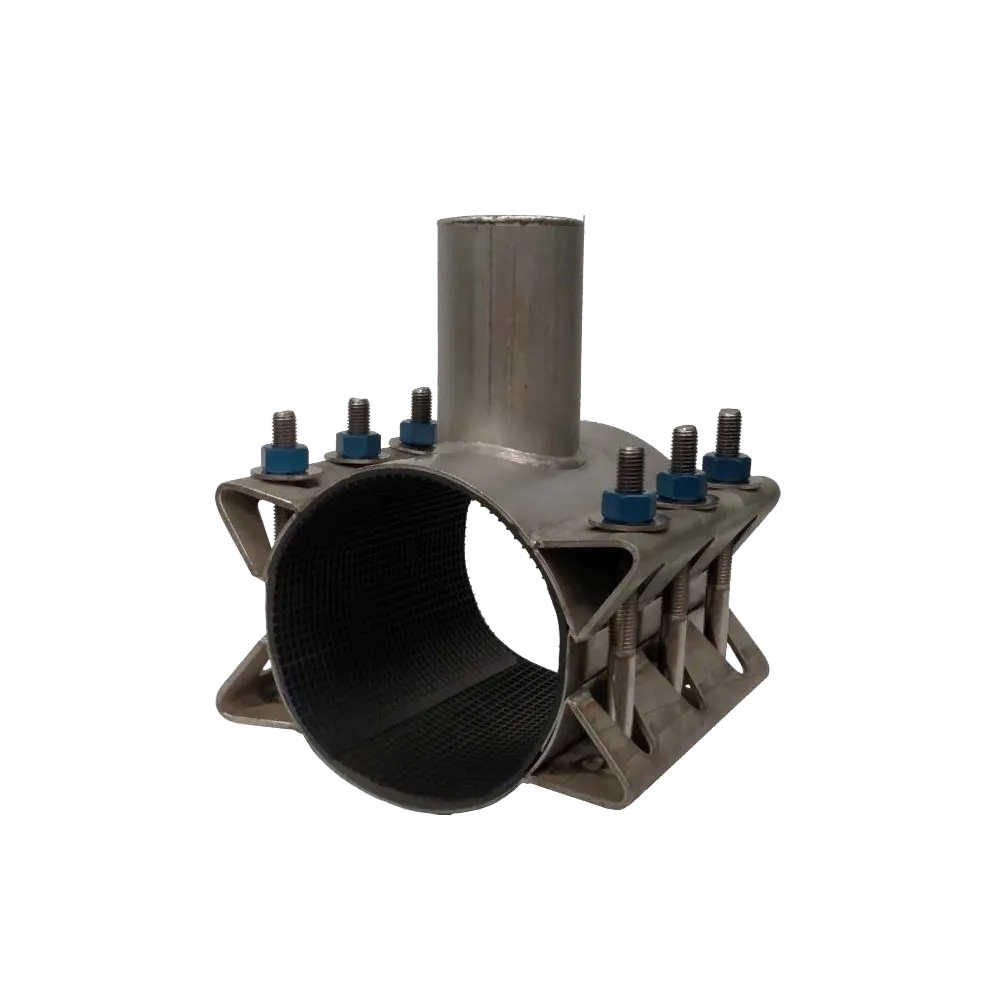

• CS22 – 4 studs (8″ wide); ¾” – 2″ CC / IPS tap all stainless steel saddle; 1.3″ range

• CS12 – 2 studs (5″ wide); ¾” – 1″ CC / IPS tap all stainless steel saddle; 1.3″ range

• CSC2 – 1 pc. installation (8” wide); ¾” – 1″ cc / IPS tap all stainless steel saddle

• CSC1 – 1 pc. installation (5” wide); ¾” – 1″ cc / IPS tap all stainless steel saddle

(CSC2 accepts safety and speed tool – The Third Hand Tool)

(Sewer TEE does not include rubber coupling* – coupling shown for fitment)

Better distribution of compression load on pipe. Prevents deformation or crushing of pipe wall.

(Sewer WYE does not include rubber coupling* – coupling shown for fitment)

Better distribution of compression load on pipe. Prevents deformation or crushing of pipe wall.

Make tap connection to small diameter pipe

• 3″ (-03EX) covers Corporation Stop sizes 1/2″ – 1″; 8″ TALL CAP, 9″ LAY LENGTH

• 5″ (-05EX) covers Corporation Stop sizes 1-1/4″ – 2″; 12″ TALL CAP, 15″ LAY LENGTH

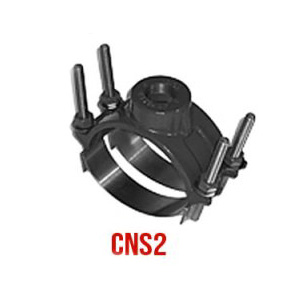

• CNS2 – Double strap; ¾” – 2″ CC or IPS tap ductile body service saddle

• CNS1 – Single strap; ½” – 2” CC or IPS tap ductile body service saddle

¾” – 2″ CC or IPS tap Ductile Body Service Saddle

• CDS2 – Double U-Bolt; ½” – 2″ CC or IPS tap Ductile Body Service Saddle

• CDS1 – Single U-Bolt; ½” – 2″ CC or IPS tap Ductile Body Service Saddle

2″ – 4″ IPS tap service saddle; Epoxy coating

Special gaskets available
